SKU: 1293

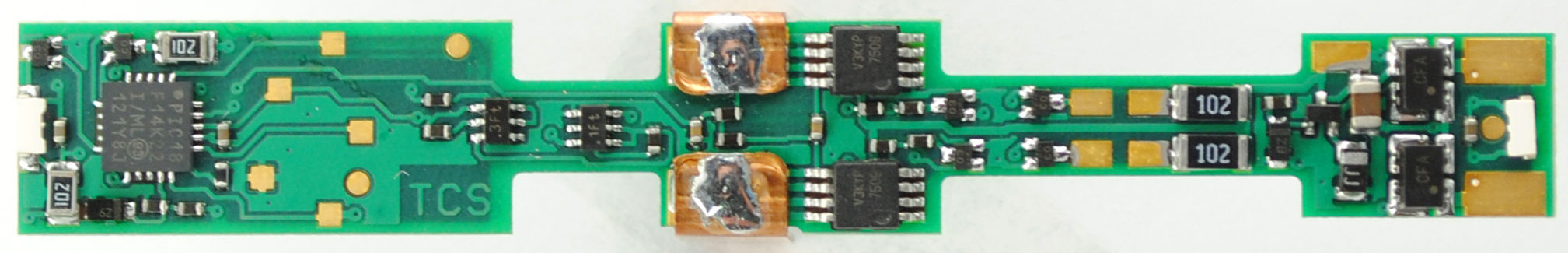

The K1D4 is a 4-function N-scale drop-in decoder designed for Kato and Athearn locomotives. Examples include the following:



  • C30-7
  • SD40
  • SD70/SD70M/SD70MAC
  • GE C44-9W
  • GE AC4400W



  • F45


See the Installation Pages for a full list of compatible engines!


Note: This version of the K1D4 has copper tabs installed which slip over the motor contacts on the locomotive. If your locomotive uses wires, see the "-NC" version.


  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.


  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.


  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.


  • RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.


  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.


  • LED Support: This product does not require external resistors when connecting LED's.


  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.


  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.


  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!


  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.


  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.


  • Airwire™ Compatible: Fully compatible with Airwire™ operation.


  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
